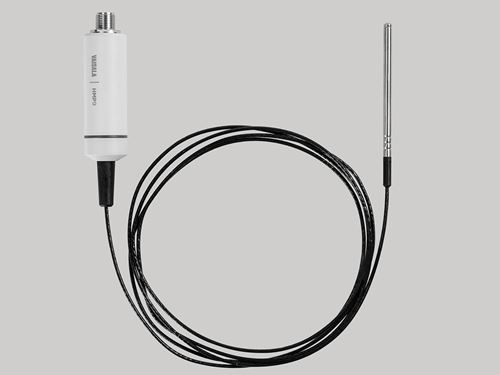

Compact Humidity and Temperature Probe HMP9
(for rapidly changing environments)

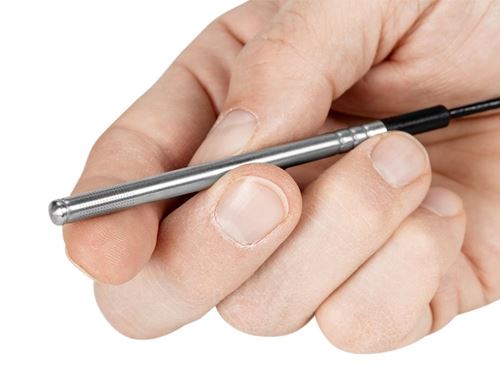

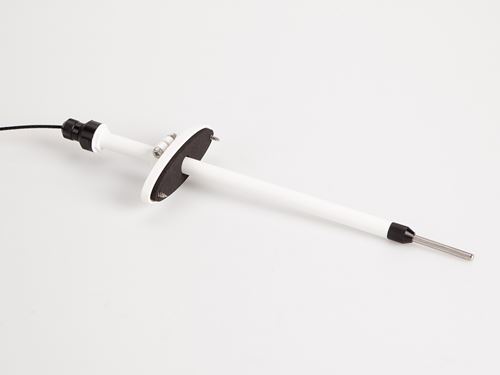

The Vaisala HUMICAP® Humidity and Temperature Probe HMP9 is designed for easy installation in rapidly changing environments where a fast response time, measurement performance, and chemical tolerance are essential. The compact size enables installation even in tight spaces, with the probe head only 5 mm (0.2 in) in diameter. For duct and chamber installations, a duct installation kit is available for the probe.
TECHICAL SPECIFICATIONS
| Output (digital): | RS485, non isolated |
| Operating Voltage: | 15...30VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at +23°C, between 0...90%RH) : | ±0.8%RH |
| Measurement Range T : | −40 … +120 °C (−40 … +248 °F) |
| Accuracy (At +23°C): | ±0.1°C (±0.18°F) |
| IP Rating: | IP65 |
APPLICATIONS
