GMP251 CO2 Probe

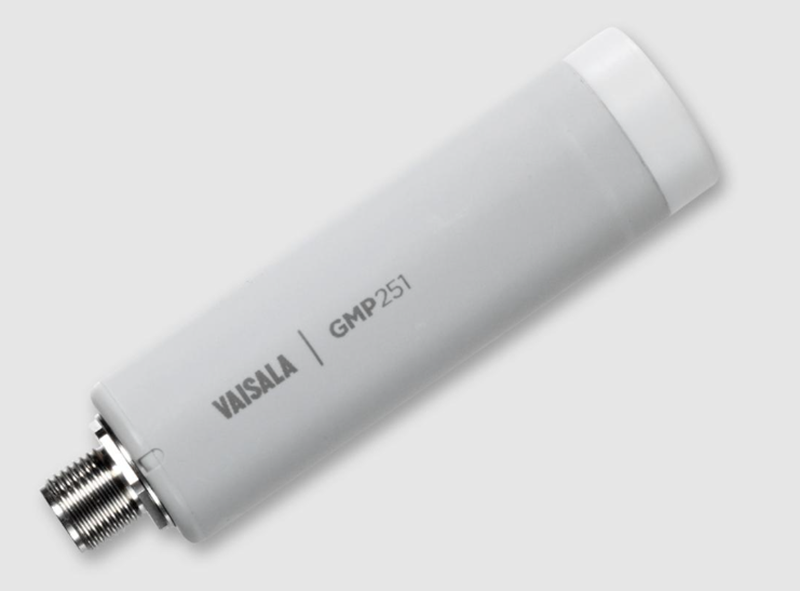

CO2 Probe GMP251 (%-level measurement)

The Vaisala CARBOCAP Carbon Dioxide Probe GMP251 is an intelligent, stand-alone, %-level probe for measuring CO2 in life science incbators, cold storages, fruit and vegetable transportation, and in all demanding applications where stable and accurate percentage level CO2 measurements are needed. The operating temperature range is -40...+60°C and the measurement range is 0...20%CO2

The GMP251 probe is part of Indigo product family and can also be connected to the Indigo 200 Series transmitters to extend its features, for example, for a display or relays.

The GMP251 replaces the following discontinued products: GMM221 and GMT221.

TECHNİCAL SPECİFİCATİONS
Output : 0...5V; 0...10V; 0...20mA; 4...20mA; RS-485
Power: 20...30VDC
Measurement Range CO2: 0...%20
Accuracy (at 25°C) : ±0.2%CO2 (between 0...8% CO2) ±0.4%CO2 (between 8%...20% CO2)
Housing Classification: IP65
