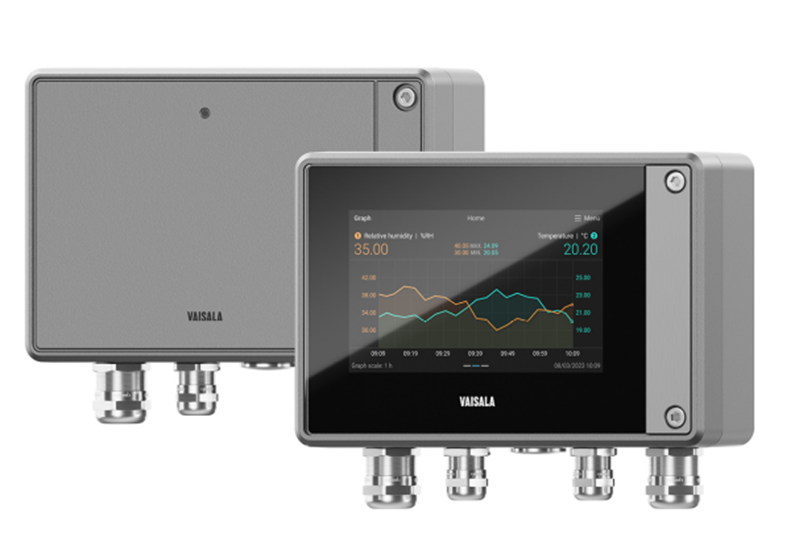

INDIGO520 Transmitter
Vaisala Indigo520 transmitter is an industrial-grade, robust transmitter that accommodates 1 or 2 Vaisala Indigo-compatible probes for humidity, temperature, dew point, carbon dioxide, hydrogen peroxide, and moisture in oil measurements. The transmitter can measure barometric pressure with an additional module.
TECHNICIAL SPECIFICATIONS
| Output: | 0...1V ; 0...5V; 0...10V; 0...20mA; 4...20mA |
| Operating Voltage: | 15 … 35 V DC, 24 V AC ±20 % |
| Number of analog outputs: | 4 |
| Pressure range (Optional): | 500–1100 hPa |
| Accuracy at +20 °C / +68 °F: | ±0.10 hPa |
| Compatible Probes: | HMP1, HMP3, HMP4, HMP5, HMP7, HMP8, HMP9, TMP1, DMP5, DMP6, DMP7, DMP8, GMP251, GMP252, HPP271, HPP272, MMP8 |
| IP Rating: | IP66 |
APPLICATIONS
