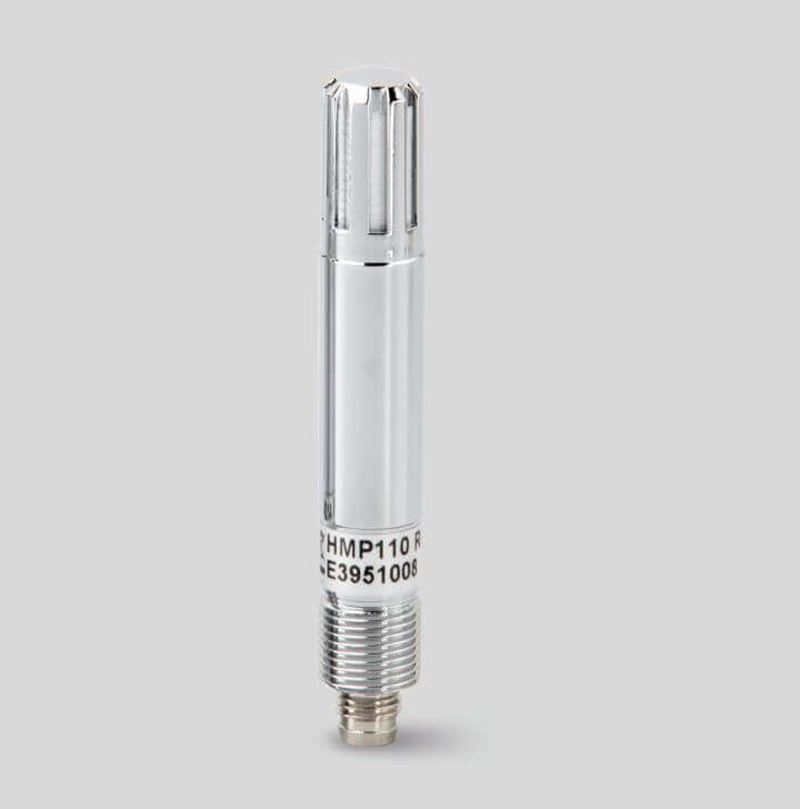

Humidity and Temperature Probe HMP110
(with ±1.5%RH Accuracy for Demanding Volume Applications )
The miniature size HMP110 has measurement range of 0...100%RH; -40...+80°C and the probe incorporates the latest generation HUMICAP 180R sensor for best stability and high chemical tolerance. The HMP110 has an IP65-classified metal housing. This probe is suitable for volume applications or integration into other manufacturer's equipment and also for glove boxes, greenhouses, fermantation and stability chambers, dataloggers and incubators.
TECHNICIAL SPECIFICATIONS
| Output (2 channel): | 0...1V; 0...2.5V; 0...5V; 1...5V; RS485 |
| Output (1 channel, with seperate module): | 4...20mA |
| Operating Voltage: | 8...28VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at 0...+40°C, between 0...90%RH) : | ±1.5%RH |
| Measurement Range T : | -40...+80°C (-40...+176°F) |
| Accuracy (At 0...+40°C): | ±0.2°C (±0.36°F) |
| IP Rating: | IP65 |
APPLICATIONS
