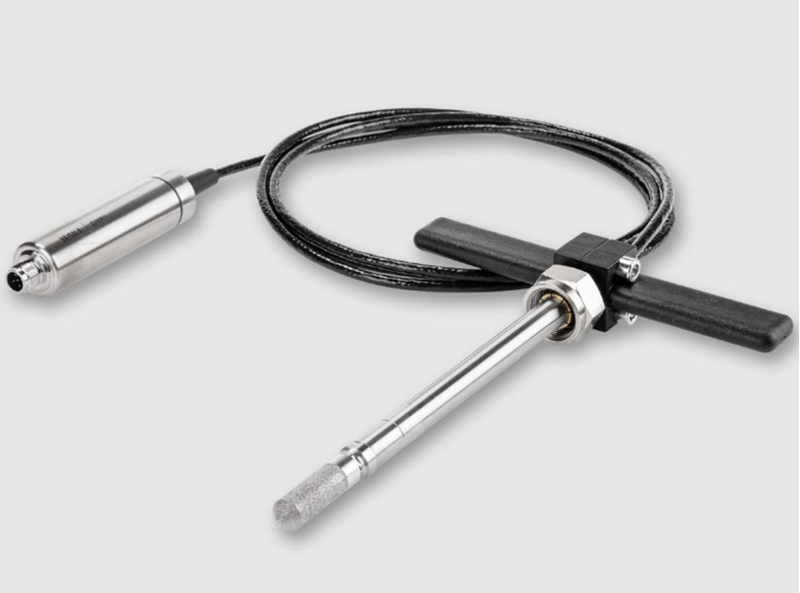

Dew Point and Temperature Probe DMP8
(with adjustable installation depth for pressurized pipelines <40 bars)
Vaisala DRYCAP Dew Point and Temperature Probe DMP8 is designed for industrial low-humidity applications with pressure up to 40 bars. Typical applications include industrial drying, compressed air systems, and applications in the semiconductor industry.
DMP8 can be installed in a 1/2" NPT or ISO thread with adjustable insertion depth. An optional ball-valve installation kit allows the probe to be inserted or detached from a pressurized line.
DMP8 is part of the Indigo family and is compatible with Indigo500, Indigo300 and Indigo200 series transmitters. It can be used with Vaisala Insight PC software for data visualization, easy probe configuration and self-calibration.
TECHNICIAL SPECIFICATIONS
| Operating Voltage: | 15 … 30 V DC |
| Output : | RS-485, non-isolated |
| Measurement Range Td: | −70 … +80 °C (−94 … +176 °F) Td/f |
| Accuracy Td: | ±2 °C (±3.6 °F) Td/f |
| Measurement Range Temperature (°C): | 0 … +80 °C (+32 … +176 °F) |
| Accuracy °C: | ±0.2 °C at room temperature |
| Measurement Range Relative Humidity: | 0–70 %RH |
| Accuracy %RH: | ±0.004 %RH + 20% of reading |
| Measurement Range Concentration by volume (ppm): | 10–2500 ppm |
| Accuracy ppm: | 1 ppm + 20% of reading |
| IP Rating: | IP66 |
