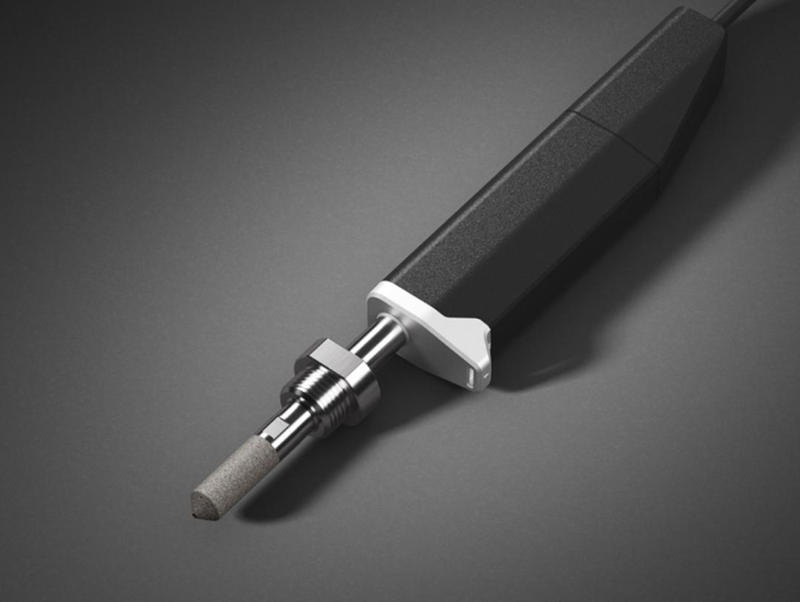

DMP80 DRYCAP® handheld probe for dew point and temperature
(For spot-checking and calibrating dew point measurements)
The DMP80 probes are compatible with Indigo80 handheld device. Part of the Indigo family of probes and transmitters, the DMP80 is optimized for portable data logging and measurement spot-checking of process dew point measurements in a wide range of temperatures and pressure ranges. Robust against particulate contamination, condensation, oil vapor, and most chemicals, the DMP80 provides fast reaction time, long-term stability, and unmatched performance in dynamic and low dew point applications. For device analytics and configuration, the DMP80 probes can be connected to Vaisala Insight software for Windows®.
TECHICAL SPECIFICATIONS
| Output (digital): | RS485, non isolated |
| Operating Voltage: | 15...30VDC |
| Measurement Range Dew-Point Td (DMP80A): | −40 … +60 °C (−40 … +140 °F) Td/f |
| Measurement Range Dew-Point Td (DMP80B): | −70 … +60 °C (−94 … +140 °F) Td/f |
| Accuracy Td/f: | ±2 °C (±3.6 °F) Td/f |
| Measurement Range Temperature (°C): | 0 … +60 °C (+32 … +140 °F) |
| Accuracy (At +23°C): | ±0.2 °C (±0.36 °F) |
| IP Rating: | IP66 |
