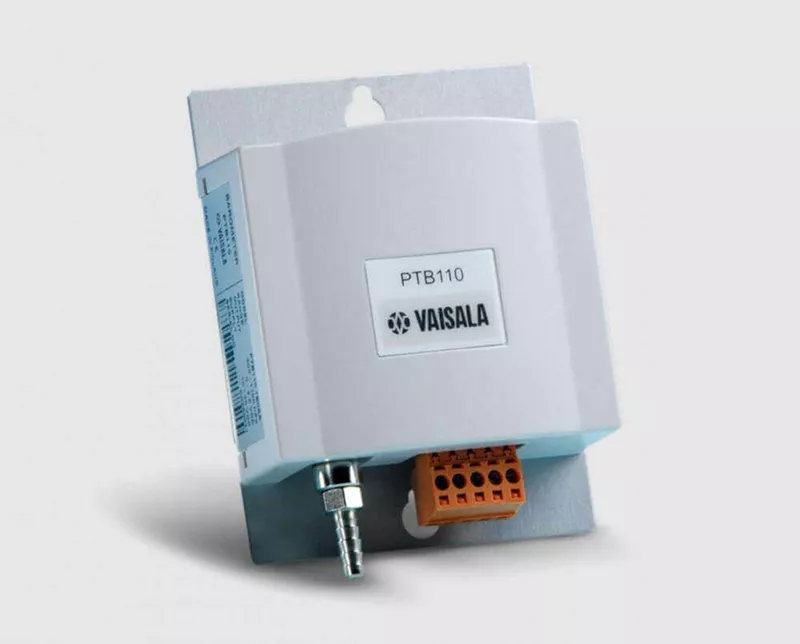

PTB110 Barometer

(for Industrial Use)

Vaisala BAROCAP® Barometer PTB110 is designed both for accurate barometric pressure measurements at a room temperature and for general environmental pressure monitoring over a wide temperature range. The compact PTB110 is suitable for applications, such as environmental pressure monitoring, data buoys, laser interferometers, and in agriculture and hydrology. Due to its very low power consumption, the barometer is particularly ideal for different data logger applications.

Features

• Vaisala BAROCAP® sensor

• Several pressure ranges

• Accuracy ±0.3 hPa at +20 °C

• Long-term stability

• Output voltage 0 ... 2.5 or 0 ... 5 VDC

• On/off control with external trigger

• Output voltage 0 ... 2.5 or 0 ... 5 VDC

• Current consumption less than 4 mA

• Mountable on a (35 mm wide) DIN rail
