Moisture and Temperature Meter Series MMT310
(for transformer oil, hydraulic and lubrication systems in marine and paper industry)

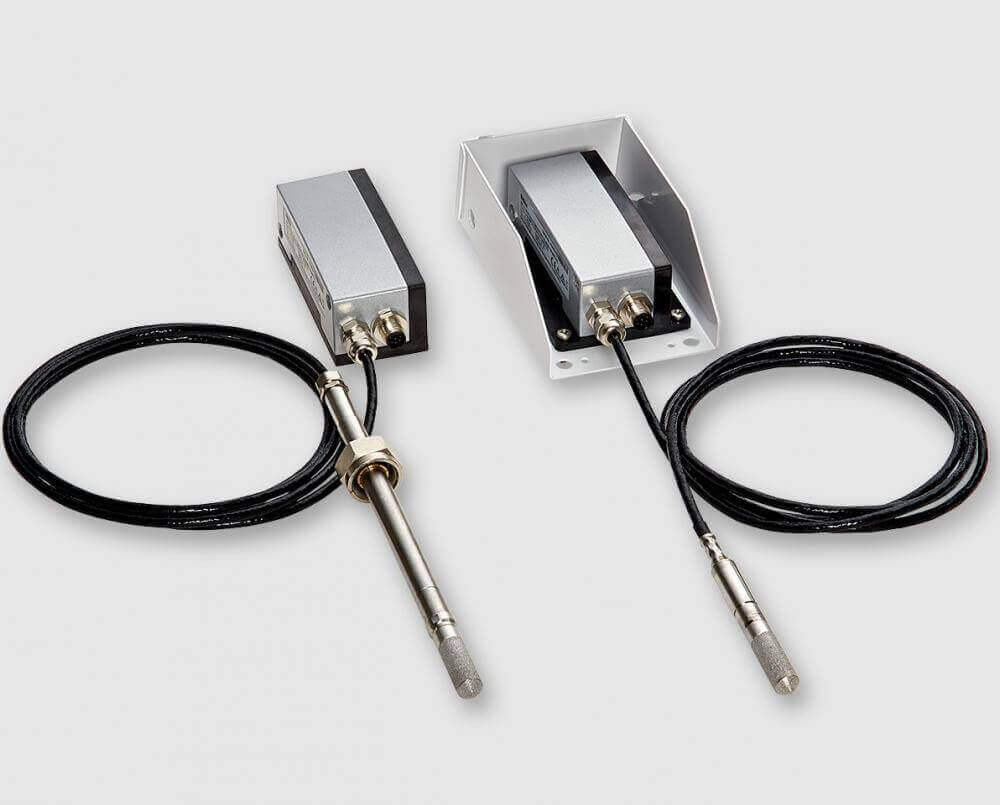

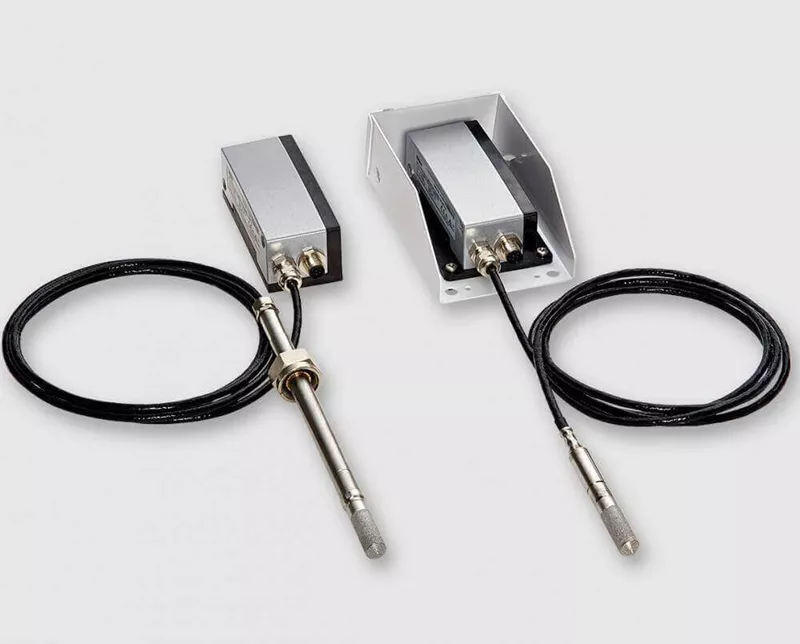

Vaisala HUMICAP Moisture and Temperature Transmitter Series MMT310 is a fast and reliable on-line detector for moisture in oil. Used in for applications such as e.g. monitoring of transformer oil and of lubrication systems in marine and paper industry.
Features
-
Continuous measurement of moisture in oil with excellent long-term stability
-
Proven Vaisala HUMICAP® sensor, over 15 years in oil applications
-
Measurements in lubrication, hydraulic and transformer oils
-
Excellent pressure and temperature tolerance
-
Measuring water activity - ppm calculation for transformer oil
-
Traceable calibration (certificate included)
TECHNICAL SPECIFICATIONS
| Output: | 0...20mA, 4...20mA, 0…5V, 0…10V, 1…5 V |
| Operating Voltage: | 10 VDC, 15 VDC, 24 VDC |
| Number of Analog Outputs: | 2 |
| Measurement Range aw: | 0...1 |
| Accuracy (aw): | ±0.02 |
| Measurement Range T: | -40...+180°C (-40...+356°F) |
| Accuracy (°C): | ±0.2°C |
| Pressure range for MMT317: | 0 ... 10 bar |
| Pressure range for MMT318: | 0 ... 40 bar |
| IP Rating: | IP66 |
APPLICATIONS
