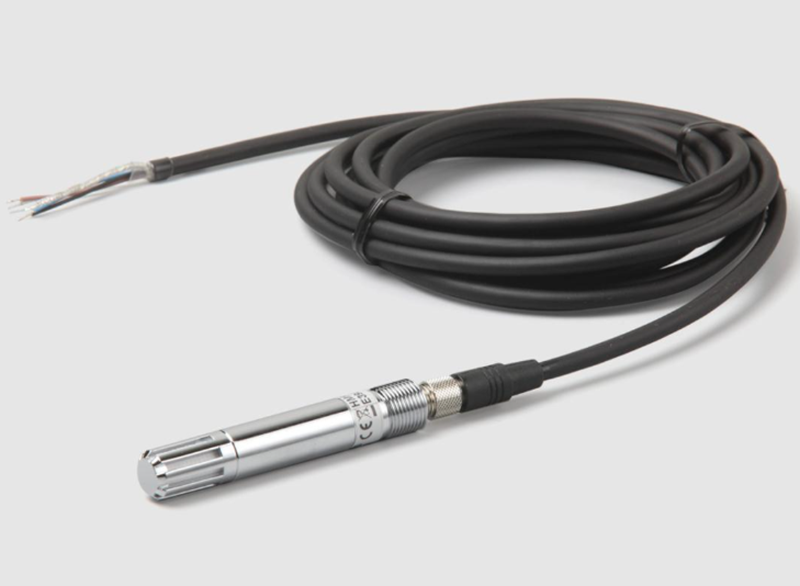

HMP60 Humidity and Temperature Probe
(for volume applications)
HMP60 is a simple, durable and cost-effective humidity probe suitable for volume applications, integration into other manufacturers' equipment, incubators, glove boxes, greenhouses, fermentation chambers and data loggers.
Features
- Measurement range: 0 ... 100 %RH; -40 ... +60°C
- Cable detachable with standard M8 connector
- Rugged metal housing
- Interchangeable Vaisala INTERCAP® Sensor
- Optional RS485 digital output
- Optional dew point output
TECHNICIAL SPECIFICATIONS
| Output (2 channels): | 0–1 V DC / 0–2.5 V DC / 0–5 V DC / 1– 5 V DC |
| Output (1 channel, with seperate module): | 4...20mA |
| Digital output (optional): | RS-485 2-wire half duplex, supports Modbus RTU |
| Operating Voltage: | 8...28VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at 0...+40°C, between 0...90%RH) : | ±3%RH |
| Measurement Range T : | -40...+60°C |
| Accuracy (At +10...+30°C): | ±0.5°C |
| IP Rating: | IP65 |
APPLICATIONS
Sensor chain solutions for data centers
