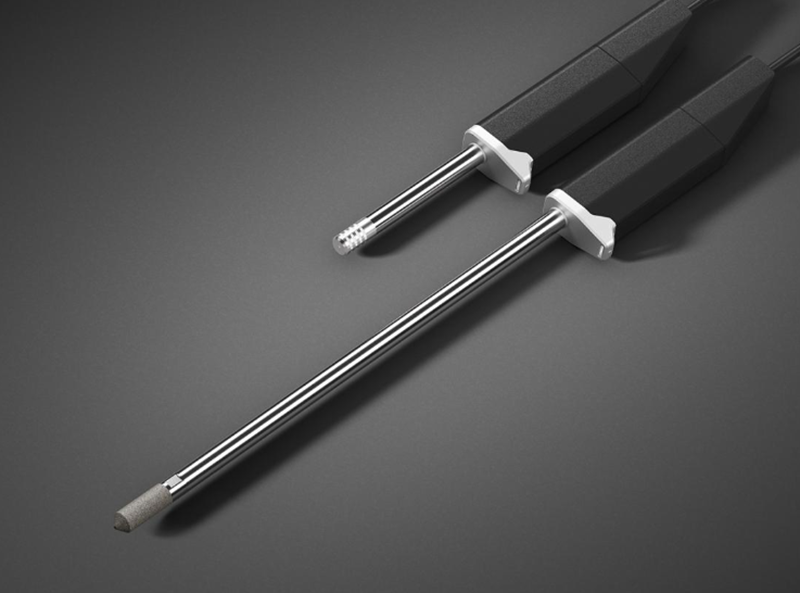

HMP80 HUMICAP® handheld probe for humidity and temperature
(For spot-checking and calibrating humidity and temperature measurements)
HMP80 probes are based on Vaisala HUMICAP® sensor technology and are optimized for portable measurements with the Indigo80 Handheld Indicator. Part of the Indigo family of probes and transmitters, the HMP80 is optimized for portable data logging and measurement spot-checking in a wide range of environments. The probes are IP67 classified for protection against moisture and dust. For device analytics and configuration, the HMP80 probes can be connected to Vaisala Insight software for Windows®.
TECHICAL SPECIFICATIONS
| Output (digital): | RS485, non isolated |
| Operating Voltage: | 15...30VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at +23°C, between 0...90%RH) : | ±0.8%RH |
| Measurement Range T (HMP80N): | −20 … +60 °C (−4 … +140 °F) |
| Measurement Range T (HMP80L): | −50 … +120 °C (−58 … +248 °F) |
| Accuracy (At +23°C): | ±0.1°C (±0.18°F) |
| IP Rating: | IP66 |
