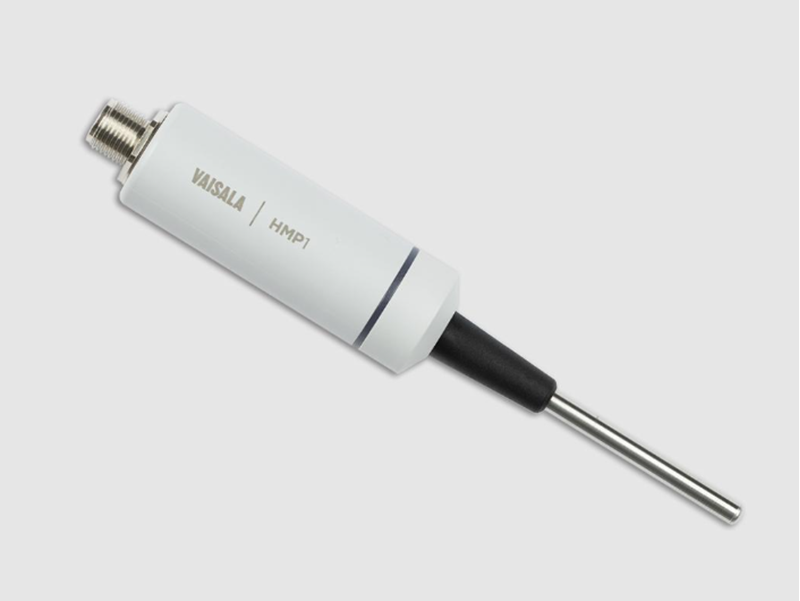

Humidity and Temperature Probe HMP1
(for wall mounting)
Vaisala HUMUCAP Humidity and Temperature Probe HMP1 is designed for measuring ambient measurement in indoor spaces. HMP1 can be directly connected to Indigo200 series transmitters to form a single wall-mounted unit. Its probe head and body are integrated to a single unit and it uses the miniature 5 mm (0.2 in) diameter HUMICAP® sensor and head for great stability and fast response time.
TECHNICIAL SPECIFICATIONS
| Output (digital): | RS485, non isolated |
| Operating Voltage: | 15...30VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at +23°C, between 0...90%RH) : | ±1.0%RH |
| Measurement Range T : | −40 … +60 °C (−40 … +140 °F) |
| Accuracy (At +23°C): | ±0.2°C (±0.18°F) |
| IP Rating: | IP50 |
