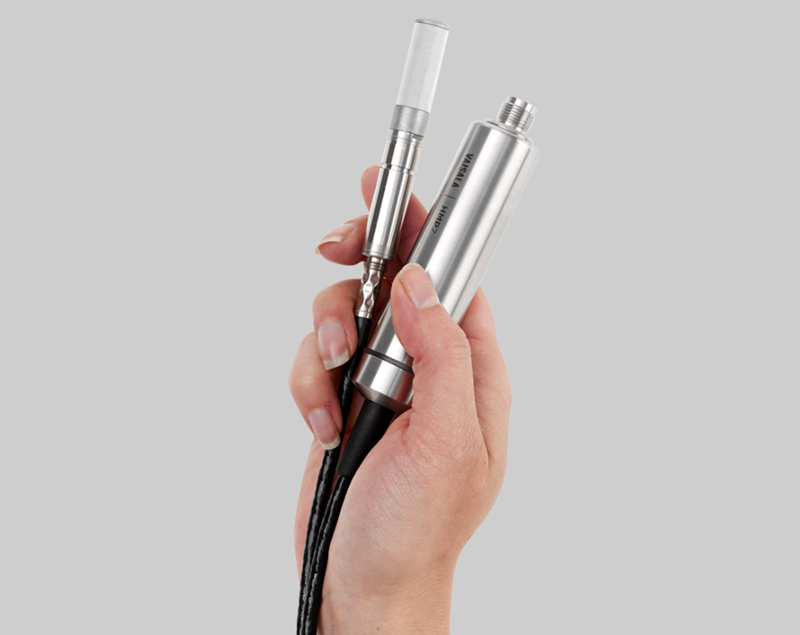

Relative Humidity and Temperature Probe HMP7
(For High Humidities)
Vaisala HUMICAP Humidity and Temperature Probe HMP7 is designed for applications which involve constant high humidity or rapid changes in humidity such as drying and test chambers, combustion air and other humidifiers and meteorological measurements where measurement performance and chemical tolerance are essential. The HMP7 is part of the Indigo product family and compatible with Indigo500, Indigo300 and Indigo200 series transmitters and free Insight PC software.
TECHICAL SPECIFICATIONS
Output (digital): | RS485, non isolated |
Operating Voltage: | 18–30 V DC |
Measurement Range RH: | 0...100%RH |
Accuracy (at +23°C, between 0...90%RH) : | ±0.8%RH |
Measurement Range T : | -70...+180°C (-94...+356°F) |
Accuracy (At +23°C): | ±0.1°C (±0.18°F) |
IP Rating: | IP66 |
APPLICATIONS
