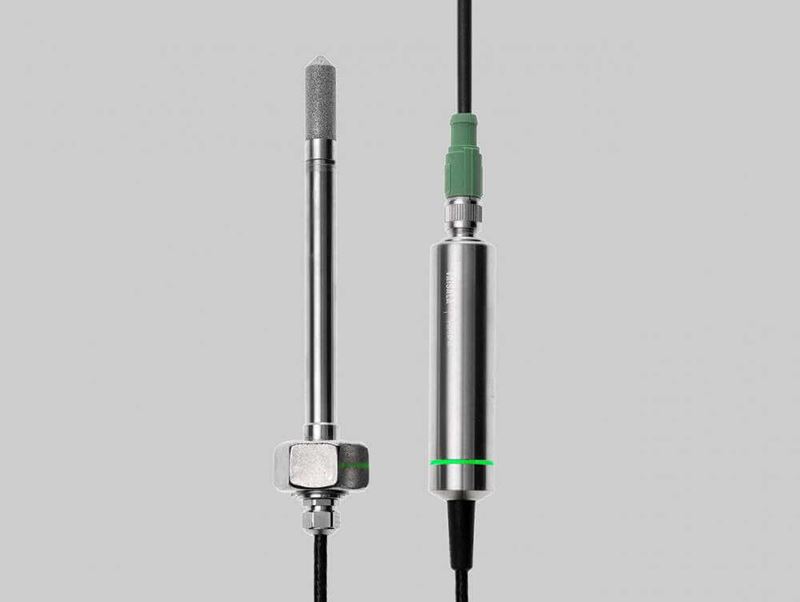

Relative Humidity and Temperature Probe HMP4
(For High Pressure)
Vaisala HUMUCAP Humidity and Temperature Probe HMP4 is designed for high-pressure applications such as compressed air systems in maritime, breathing air, and industrial applications, where measurement performance and chemical tolerance are essencial. The HMP4 is part of the Indigo product family and compatible with Indigo 200 Series Host Devices and free Insight PC Software.
TECHNICIAL SPECIFICATIONS
| Output (digital): | RS485, non isolated |
| Operating Voltage: | 15...30VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at +23°C, between 0...90%RH) : | ±0.8%RH |
| Measurement Range T : | -70...+180°C (-94...+356°F) |
| Accuracy (At +23°C): | ±0.1°C (±0.18°F) |
| IP Rating: | IP66 |
APPLICATIONS
Compressed air dew point sampling
