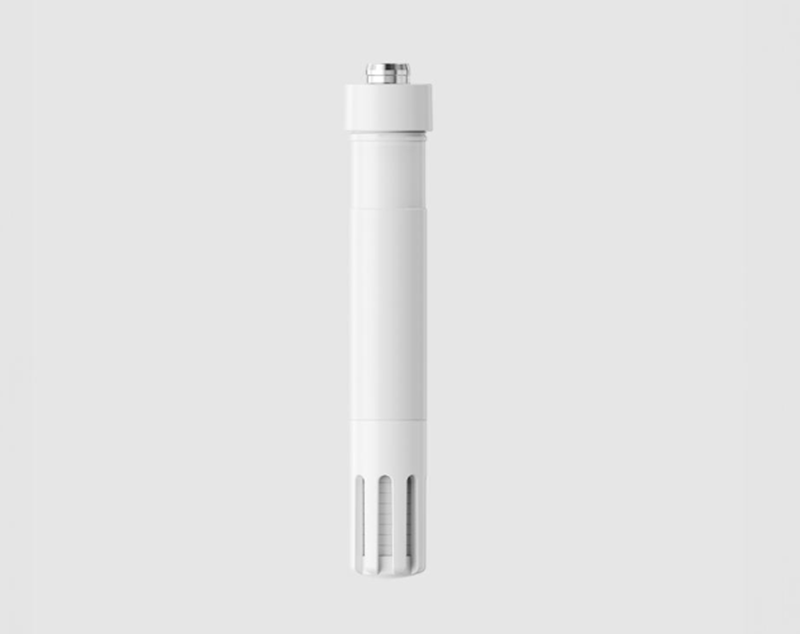

HUMICAP® Humidity and Temperature Probe HMP113
The Vaisala HUMICAP Humidity and Temperature Probe HMP113 is a highly accurate and cost-effective humidity probe with a plastic enclosure. It has excellent reliability and high chemical tolerance and is suitable for non-condensing environments with fast temperature changes and a need for high accuracy measurements with traceability. The HMP113 is designed for indoor environments and integration into other manufacturers’ equipment, or use with Vaisala HUMICAP Handheld Humidity and Temperature Meter HM40.
TECHNICIAL SPECIFICATIONS
| Output (2 channel): | 0...1V; 0...2.5V; 0...5V; 1...5V; RS485 |
| Output (1 channel, with seperate module): | 4...20mA |
| Operating Voltage: | 8...28VDC |
| Measurement Range RH: | 0...100%RH |
| Accuracy (at 0...+40°C, between 0...90%RH) : | ±1.5%RH |
| Measurement Range T : | −40 … +60 °C (−40 … +140 °F) |
| Accuracy (At 0...+40°C): | ±0.2°C (±0.36°F) |
| IP Rating: | IP54 |
APPLICATIONS
